Flutter Authorization with RLS

2022-11-22

67 minute read

This article is the second part of the Flutter tutorial series. During the series, you will learn how to build cross-platform apps without worrying about the backend.

In this article, I will show you how you can make a secure chat application by introducing authorization to the basic chat app that we created previously.

We will store the chat data on Supabase. Supabase utilizes the built in authorization mechanism of PostgreSQL called Row Level Security or RLS to prevent unauthorized access from accessing or writing data to your database. RLS allows developers to define row-by-row conditions that evaluate to either true or false to either allow the access or deny it. We will take a look at more specific examples of authorization using RLS throughout this article.

What we created in the previous article

Before we jump in, let's go over what we built in the previous article, because we will be building on top of it. If you have not gone through it, I recommend you to go check it out.

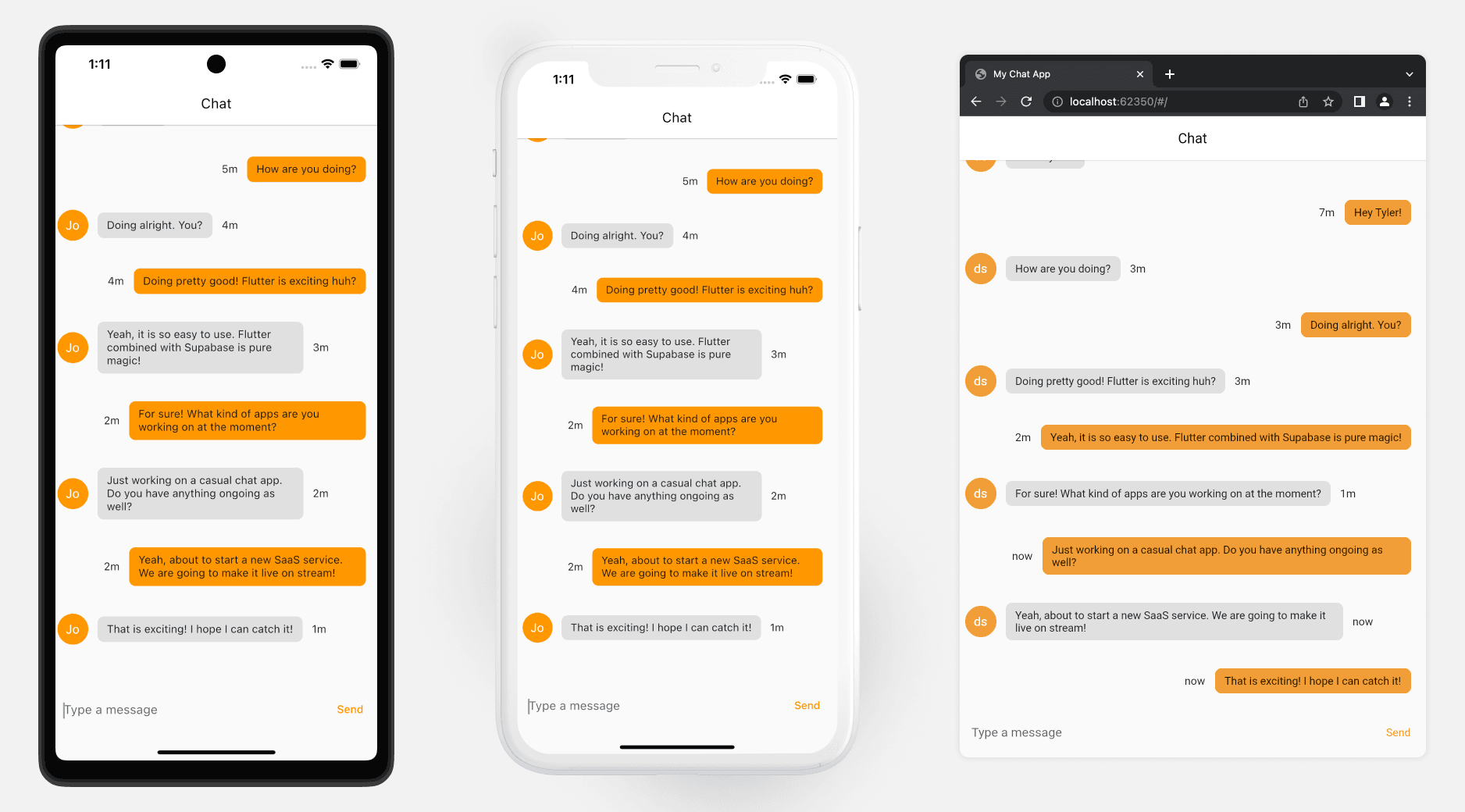

In the previous article, we created a basic real-time chat application. Users will register or sign in using an email address and password. Once they are signed in, they are taken to a chat page, where they can view and send messages to everyone in the app. There are no Chat rooms, and everyone's messages were sent to the same chat room.

You can also find a complete code example here to follow along.

Chat app without authorization

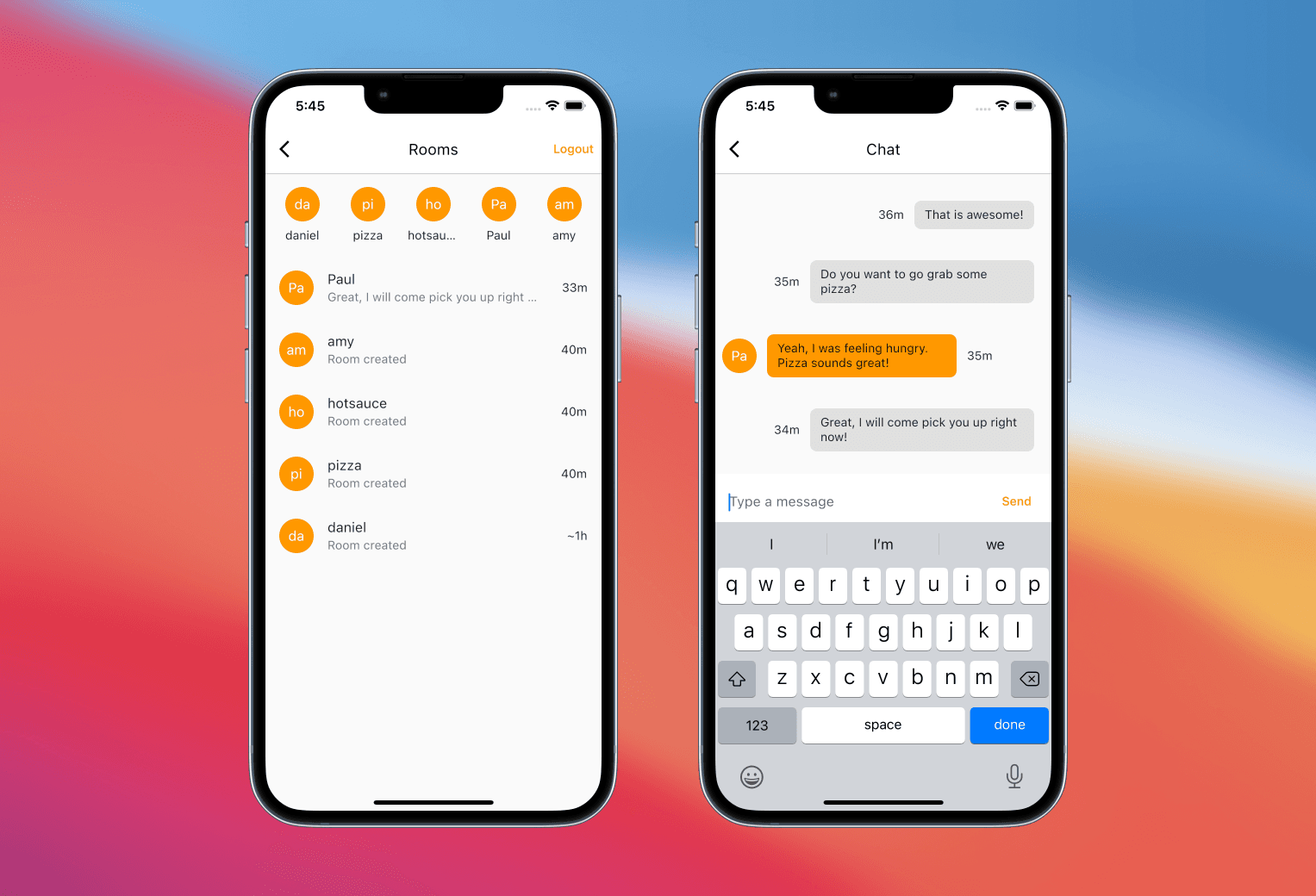

Overview of the final app

The app will allow us to have 1 on 1 chat with other users in the app. To enable this, we will introduce a new rooms page. The rooms page serves two purposes here, one is to initiate a conversation with other users, and the other is to display existing chat rooms. At the top of the app, we see a list of other users' icons. A user can tap the icon to start a 1 on 1 conversation. Below the icons, there is a list of rooms that the user is a part of.

Chat app without authorization

Sessing up the scene

Install additional dependencies

We will install flutter_bloc for state management. Introducing a state management solution will allow us to handle the shared message and profile data efficiently between the rooms page and the chats page. We can use any state management solution for this, but we are going with bloc in this example. Add the following in your pubspec.yaml file to install flutter_bloc in your app.


_10
flutter_bloc: ^8.0.0

Modifying the table schema

Since the app has evolved, we also need to update our table schema. In order to store rooms data, we will add a rooms table. We will also modify the messages table to add a foreign key constraint to the rooms table so that we can tell which message belongs to which room.

We will also introduce a create_new_room function, which is a database function that handles chat room creation. It knows to create a new room if a chat room with the two users does not exist yet, or to just return the room ID if it already exists.


_60
-- *** Table definitions ***
_60
_60
create table if not exists public.rooms (
_60
id uuid not null primary key default gen_random_uuid(),
_60
created_at timestamp with time zone default timezone('utc' :: text, now()) not null
_60
);
_60
comment on table public.rooms is 'Holds chat rooms';
_60
_60
create table if not exists public.room_participants (
_60
profile_id uuid references public.profiles(id) on delete cascade not null,
_60
room_id uuid references public.rooms(id) on delete cascade not null,
_60
created_at timestamp with time zone default timezone('utc' :: text, now()) not null,
_60
primary key (profile_id, room_id)
_60
);
_60
comment on table public.room_participants is 'Relational table of users and rooms.';
_60
_60
alter table public.messages
_60
add column room_id uuid references public.rooms(id) on delete cascade not null;
_60
_60
-- *** Add tables to the publication to enable realtime ***
_60
_60
alter publication supabase_realtime add table public.room_participants;
_60
_60
-- Creates a new room with the user and another user in it.
_60
-- Will return the room_id of the created room
_60
-- Will return a room_id if there were already a room with those participants
_60
create or replace function create_new_room(other_user_id uuid) returns uuid as $$
_60
declare
_60
new_room_id uuid;
_60
begin
_60
-- Check if room with both participants already exist
_60
with rooms_with_profiles as (
_60
select room_id, array_agg(profile_id) as participants
_60
from room_participants
_60
group by room_id
_60
)
_60
select room_id
_60
into new_room_id
_60
from rooms_with_profiles
_60
where create_new_room.other_user_id=any(participants)
_60
and auth.uid()=any(participants);
_60
_60
_60
if not found then
_60
-- Create a new room
_60
insert into public.rooms default values
_60
returning id into new_room_id;
_60
_60
-- Insert the caller user into the new room
_60
insert into public.room_participants (profile_id, room_id)
_60
values (auth.uid(), new_room_id);
_60
_60
-- Insert the other_user user into the new room
_60
insert into public.room_participants (profile_id, room_id)
_60
values (other_user_id, new_room_id);
_60
end if;
_60
_60
return new_room_id;
_60
end
_60
$$ language plpgsql security definer;

Something we skipped in the previous article was sending confirmation emails to users when they signup. Since today is about security, let's properly send confirmation emails to people who signup.

When we send confirmation emails, the users need to be brought back to the app somehow. Since supabase_flutter has a mechanism to detect and handle deep links, we will register a io.supabase.chat://login as our deep link for the app and bring the users back after confirming their email address.

For iOS we edit the info.plist file to register the deep link.


_20
<!-- ... other tags -->
_20
<plist>
_20
<dict>
_20
<!-- ... other tags -->
_20
_20
<!-- Add this array for Deep Links -->
_20
<key>CFBundleURLTypes</key>
_20
<array>
_20
<dict>
_20
<key>CFBundleTypeRole</key>
_20
<string>Editor</string>
_20
<key>CFBundleURLSchemes</key>
_20
<array>
_20
<string>io.supabase.chat</string>
_20
</array>
_20
</dict>
_20
</array>
_20
<!-- ... other tags -->
_20
</dict>
_20
</plist>

For Android we edit the AndroidManifest.xml to register the deep link.


_20
<manifest ...>
_20
<!-- ... other tags -->
_20
<application ...>
_20
<activity ...>
_20
<!-- ... other tags -->
_20
_20
<!-- Add this intent-filter for Deep Links -->
_20
<intent-filter>
_20
<action android:name="android.intent.action.VIEW" />
_20
<category android:name="android.intent.category.DEFAULT" />
_20
<category android:name="android.intent.category.BROWSABLE" />
_20
<!-- Accepts URIs that begin with YOUR_SCHEME://YOUR_HOST -->
_20
<data
_20
android:scheme="io.supabase.chat"
_20
android:host="login" />
_20
</intent-filter>
_20
_20
</activity>
_20
</application>
_20
</manifest>

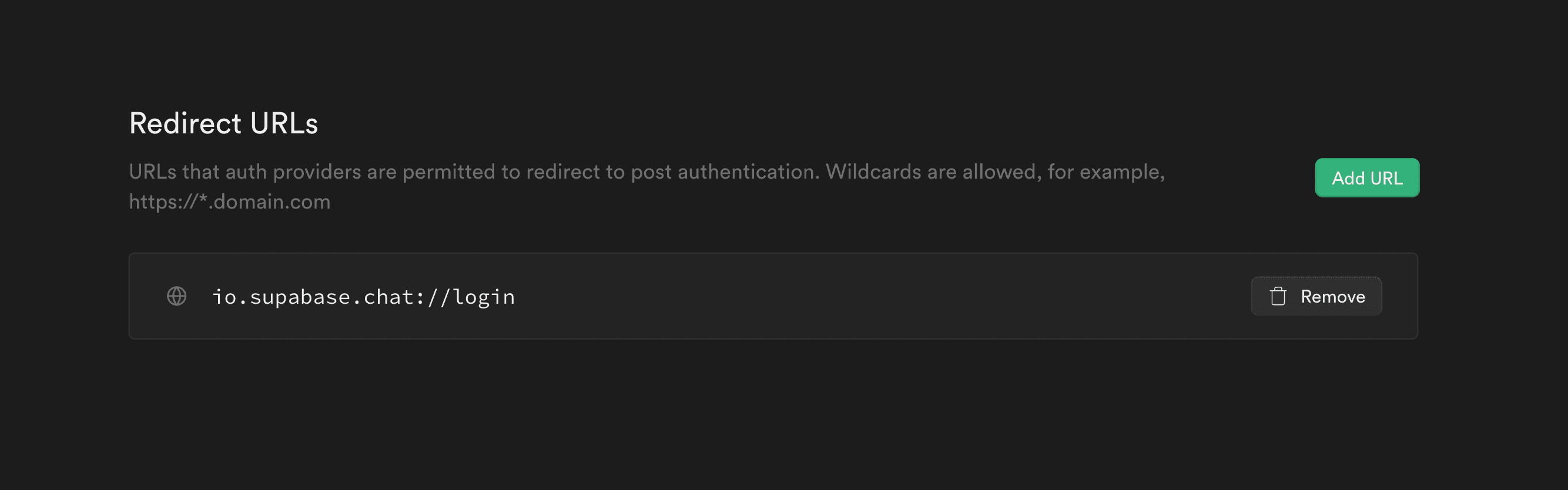

We also need to set the deep link in our Supabase dashboard. Go to Authentication > URL Configuration in your dashboard and add io.supabase.chat://login as one of the redirect URLs.

Deep link URL Configuration

And that is it for deep link configuration.

Building out the main application

Step1: Create rooms page

The rooms page will load two types of data, recently added users and a list of rooms that the user belongs to. We will be using bloc to load these two types of data and display them on the rooms page.

Let's start out by creating states for the rooms page. The rooms page would have four different states, loading, loaded, empty, and error. We will display different UI on the rooms page depending on what state it is. Satrt by defining the Room model. Create a lib/models/room.dart file and add the following code.


_50
import 'package:my_chat_app/models/message.dart';
_50
_50
class Room {
_50
Room({
_50
required this.id,
_50
required this.createdAt,
_50
required this.otherUserId,
_50
this.lastMessage,
_50
});
_50
_50
/// ID of the room
_50
final String id;
_50
_50
/// Date and time when the room was created
_50
final DateTime createdAt;
_50
_50
/// ID of the user who the user is talking to
_50
final String otherUserId;
_50
_50
/// Latest message submitted in the room
_50
final Message? lastMessage;
_50
_50
Map<String, dynamic> toMap() {
_50
return {
_50
'id': id,
_50
'createdAt': createdAt.millisecondsSinceEpoch,
_50
};
_50
}
_50
_50
/// Creates a room object from room_participants table
_50
Room.fromRoomParticipants(Map<String, dynamic> map)
_50
: id = map['room_id'],
_50
otherUserId = map['profile_id'],
_50
createdAt = DateTime.parse(map['created_at']),
_50
lastMessage = null;
_50
_50
Room copyWith({
_50
String? id,
_50
DateTime? createdAt,
_50
String? otherUserId,
_50
Message? lastMessage,
_50
}) {
_50
return Room(
_50
id: id ?? this.id,
_50
createdAt: createdAt ?? this.createdAt,
_50
otherUserId: otherUserId ?? this.otherUserId,
_50
lastMessage: lastMessage ?? this.lastMessage,
_50
);
_50
}
_50
}

We will proceed with defining the states for the rooms page. Create lib/cubit/rooms/rooms_state.dart file and paste the following code. You may see some errors, but we will take care of them in the next step.


_28
part of 'rooms_cubit.dart';
_28
_28
@immutable
_28
abstract class RoomState {}
_28
_28
class RoomsLoading extends RoomState {}
_28
_28
class RoomsLoaded extends RoomState {
_28
final List<Profile> newUsers;
_28
final List<Room> rooms;
_28
_28
RoomsLoaded({
_28
required this.rooms,
_28
required this.newUsers,
_28
});
_28
}
_28
_28
class RoomsEmpty extends RoomState {
_28
final List<Profile> newUsers;
_28
_28
RoomsEmpty({required this.newUsers});
_28
}
_28
_28
class RoomsError extends RoomState {
_28
final String message;
_28
_28
RoomsError(this.message);
_28
}

Now that we have the states defined, we will create rooms_cubit. A cubit is a class within the flutter_bloc library where we will make requests to Supabase to get the data and transform them into states and emit them to the UI widgets. Let's create a lib/cubit/rooms/rooms_cubit.dart file and complete the cubit.


_140
import 'dart:async';
_140
_140
import 'package:flutter/material.dart';
_140
import 'package:flutter_bloc/flutter_bloc.dart';
_140
import 'package:my_chat_app/cubits/profiles/profiles_cubit.dart';
_140
import 'package:my_chat_app/models/profile.dart';
_140
import 'package:my_chat_app/models/message.dart';
_140
import 'package:my_chat_app/models/room.dart';
_140
import 'package:my_chat_app/utils/constants.dart';
_140
_140
part 'rooms_state.dart';
_140
_140
class RoomCubit extends Cubit<RoomState> {
_140
RoomCubit() : super(RoomsLoading());
_140
_140
final Map<String, StreamSubscription<Message?>>
_140
_messageSubscriptions = {};
_140
_140
late final String _myUserId;
_140
_140
/// List of new users of the app for the user to start talking to
_140
late final List<Profile> _newUsers;
_140
_140
/// List of rooms
_140
List<Room> _rooms = [];
_140
StreamSubscription<List<Map<String, dynamic>>>?
_140
_rawRoomsSubscription;
_140
bool _haveCalledGetRooms = false;
_140
_140
Future<void> initializeRooms(BuildContext context) async {
_140
if (_haveCalledGetRooms) {
_140
return;
_140
}
_140
_haveCalledGetRooms = true;
_140
_140
_myUserId = supabase.auth.currentUser!.id;
_140
_140
late final List data;
_140
_140
try {
_140
data = await supabase
_140
.from('profiles')
_140
.select()
_140
.not('id', 'eq', _myUserId)
_140
.order('created_at')
_140
.limit(12);
_140
} catch (_) {
_140
emit(RoomsError('Error loading new users'));
_140
}
_140
_140
final rows = List<Map<String, dynamic>>.from(data);
_140
_newUsers = rows.map(Profile.fromMap).toList();
_140
_140
/// Get realtime updates on rooms that the user is in
_140
_rawRoomsSubscription =
_140
supabase.from('room_participants').stream(
_140
primaryKey: ['room_id', 'profile_id'],
_140
).listen((participantMaps) async {
_140
if (participantMaps.isEmpty) {
_140
emit(RoomsEmpty(newUsers: _newUsers));
_140
return;
_140
}
_140
_140
_rooms = participantMaps
_140
.map(Room.fromRoomParticipants)
_140
.where((room) => room.otherUserId != _myUserId)
_140
.toList();
_140
for (final room in _rooms) {
_140
_getNewestMessage(
_140
context: context, roomId: room.id);
_140
BlocProvider.of<ProfilesCubit>(context)
_140
.getProfile(room.otherUserId);
_140
}
_140
emit(RoomsLoaded(
_140
newUsers: _newUsers,
_140
rooms: _rooms,
_140
));
_140
}, onError: (error) {
_140
emit(RoomsError('Error loading rooms'));
_140
});
_140
}
_140
_140
// Setup listeners to listen to the most recent message in each room
_140
void _getNewestMessage({
_140
required BuildContext context,
_140
required String roomId,
_140
}) {
_140
_messageSubscriptions[roomId] = supabase
_140
.from('messages')
_140
.stream(primaryKey: ['id'])
_140
.eq('room_id', roomId)
_140
.order('created_at')
_140
.limit(1)
_140
.map<Message?>(
_140
(data) => data.isEmpty
_140
? null
_140
: Message.fromMap(
_140
map: data.first,
_140
myUserId: _myUserId,
_140
),
_140
)
_140
.listen((message) {
_140
final index = _rooms
_140
.indexWhere((room) => room.id == roomId);
_140
_rooms[index] =
_140
_rooms[index].copyWith(lastMessage: message);
_140
_rooms.sort((a, b) {
_140
/// Sort according to the last message
_140
/// Use the room createdAt when last message is not available
_140
final aTimeStamp = a.lastMessage != null
_140
? a.lastMessage!.createdAt
_140
: a.createdAt;
_140
final bTimeStamp = b.lastMessage != null
_140
? b.lastMessage!.createdAt
_140
: b.createdAt;
_140
return bTimeStamp.compareTo(aTimeStamp);
_140
});
_140
if (!isClosed) {
_140
emit(RoomsLoaded(
_140
newUsers: _newUsers,
_140
rooms: _rooms,
_140
));
_140
}
_140
});
_140
}
_140
_140
/// Creates or returns an existing roomID of both participants
_140
Future<String> createRoom(String otherUserId) async {
_140
final data = await supabase.rpc('create_new_room',
_140
params: {'other_user_id': otherUserId});
_140
emit(RoomsLoaded(rooms: _rooms, newUsers: _newUsers));
_140
return data as String;
_140
}
_140
_140
@override
_140
Future<void> close() {
_140
_rawRoomsSubscription?.cancel();
_140
return super.close();
_140
}
_140
}

Now that we have the states and cubit to power our rooms page, it's time to create the RoomsPage.

We have two list views, one horizontal list view to display other users, and one vertical list views with list tiles representing each room that the user is a part of. We will create a lib/pages/rooms_page.dart file with the following content.


_187
import 'package:flutter/material.dart';
_187
import 'package:flutter_bloc/flutter_bloc.dart';
_187
import 'package:my_chat_app/cubits/profiles/profiles_cubit.dart';
_187
_187
import 'package:my_chat_app/cubits/rooms/rooms_cubit.dart';
_187
import 'package:my_chat_app/models/profile.dart';
_187
import 'package:my_chat_app/pages/chat_page.dart';
_187
import 'package:my_chat_app/pages/register_page.dart';
_187
import 'package:my_chat_app/utils/constants.dart';
_187
import 'package:timeago/timeago.dart';
_187
_187
/// Displays the list of chat threads
_187
class RoomsPage extends StatelessWidget {
_187
const RoomsPage({Key? key}) : super(key: key);
_187
_187
static Route<void> route() {
_187
return MaterialPageRoute(
_187
builder: (context) => BlocProvider<RoomCubit>(
_187
create: (context) =>
_187
RoomCubit()..initializeRooms(context),
_187
child: const RoomsPage(),
_187
),
_187
);
_187
}
_187
_187
@override
_187
Widget build(BuildContext context) {
_187
return Scaffold(
_187
appBar: AppBar(
_187
title: const Text('Rooms'),
_187
actions: [
_187
TextButton(
_187
onPressed: () async {
_187
await supabase.auth.signOut();
_187
Navigator.of(context).pushAndRemoveUntil(
_187
RegisterPage.route(),
_187
(route) => false,
_187
);
_187
},
_187
child: const Text('Logout'),
_187
),
_187
],
_187
),
_187
body: BlocBuilder<RoomCubit, RoomState>(
_187
builder: (context, state) {
_187
if (state is RoomsLoading) {
_187
return preloader;
_187
} else if (state is RoomsLoaded) {
_187
final newUsers = state.newUsers;
_187
final rooms = state.rooms;
_187
return BlocBuilder<ProfilesCubit,
_187
ProfilesState>(
_187
builder: (context, state) {
_187
if (state is ProfilesLoaded) {
_187
final profiles = state.profiles;
_187
return Column(
_187
children: [
_187
_NewUsers(newUsers: newUsers),
_187
Expanded(
_187
child: ListView.builder(
_187
itemCount: rooms.length,
_187
itemBuilder: (context, index) {
_187
final room = rooms[index];
_187
final otherUser =
_187
profiles[room.otherUserId];
_187
_187
return ListTile(
_187
onTap: () =>
_187
Navigator.of(context)
_187
.push(ChatPage.route(
_187
room.id)),
_187
leading: CircleAvatar(
_187
child: otherUser == null
_187
? preloader
_187
: Text(otherUser
_187
.username
_187
.substring(0, 2)),
_187
),
_187
title: Text(otherUser == null
_187
? 'Loading...'
_187
: otherUser.username),
_187
subtitle: room.lastMessage !=
_187
null
_187
? Text(
_187
room.lastMessage!
_187
.content,
_187
maxLines: 1,
_187
overflow: TextOverflow
_187
.ellipsis,
_187
)
_187
: const Text(
_187
'Room created'),
_187
trailing: Text(format(
_187
room.lastMessage
_187
?.createdAt ??
_187
room.createdAt,
_187
locale: 'en_short')),
_187
);
_187
},
_187
),
_187
),
_187
],
_187
);
_187
} else {
_187
return preloader;
_187
}
_187
},
_187
);
_187
} else if (state is RoomsEmpty) {
_187
final newUsers = state.newUsers;
_187
return Column(
_187
children: [
_187
_NewUsers(newUsers: newUsers),
_187
const Expanded(
_187
child: Center(
_187
child: Text(
_187
'Start a chat by tapping on available users'),
_187
),
_187
),
_187
],
_187
);
_187
} else if (state is RoomsError) {
_187
return Center(child: Text(state.message));
_187
}
_187
throw UnimplementedError();
_187
},
_187
),
_187
);
_187
}
_187
}
_187
_187
class _NewUsers extends StatelessWidget {
_187
const _NewUsers({
_187
Key? key,
_187
required this.newUsers,
_187
}) : super(key: key);
_187
_187
final List<Profile> newUsers;
_187
_187
@override
_187
Widget build(BuildContext context) {
_187
return SingleChildScrollView(
_187
padding: const EdgeInsets.symmetric(vertical: 8),
_187
scrollDirection: Axis.horizontal,
_187
child: Row(
_187
children: newUsers
_187
.map<Widget>((user) => InkWell(
_187
onTap: () async {
_187
try {
_187
final roomId =
_187
await BlocProvider.of<RoomCubit>(
_187
context)
_187
.createRoom(user.id);
_187
Navigator.of(context)
_187
.push(ChatPage.route(roomId));
_187
} catch (_) {
_187
context.showErrorSnackBar(
_187
message:
_187
'Failed creating a new room');
_187
}
_187
},
_187
child: Padding(
_187
padding: const EdgeInsets.all(8.0),
_187
child: SizedBox(
_187
width: 60,
_187
child: Column(
_187
children: [
_187
CircleAvatar(
_187
child: Text(user.username
_187
.substring(0, 2)),
_187
),
_187
const SizedBox(height: 8),
_187
Text(
_187
user.username,
_187
maxLines: 1,
_187
overflow: TextOverflow.ellipsis,
_187
),
_187
],
_187
),
_187
),
_187
),
_187
))
_187
.toList(),
_187
),
_187
);
_187
}
_187
}

You may see some errors, but they will go away once we edit the chat page!

Step 2: Modify the chat page to load messages in the room

Our ChatPage will have a similar layout as the previous one, but will only display messages sent to a single room. We will start by creating MessagesState. The messages page will also have four different states, loading, loaded, empty, and error. Create a lib/cubits/chat/chat_state.dart file with the following code.


_18
part of 'chat_cubit.dart';
_18
_18
@immutable
_18
abstract class ChatState {}
_18
_18
class ChatInitial extends ChatState {}
_18
_18
class ChatLoaded extends ChatState {
_18
ChatLoaded(this.messages);
_18
final List<Message> messages;
_18
}
_18
_18
class ChatEmpty extends ChatState {}
_18
_18
class ChatError extends ChatState {
_18
ChatError(this.message);
_18
final String message;
_18
}

Now let's create chat cubit to retrieve the data from our database and emit it as states. Create a lib/cubits/chat/chat_cubit.dart file and paste the following.


_72
import 'dart:async';
_72
_72
import 'package:bloc/bloc.dart';
_72
import 'package:meta/meta.dart';
_72
import 'package:my_chat_app/models/message.dart';
_72
import 'package:my_chat_app/utils/constants.dart';
_72
_72
part 'chat_state.dart';
_72
_72
class ChatCubit extends Cubit<ChatState> {
_72
ChatCubit() : super(ChatInitial());
_72
_72
StreamSubscription<List<Message>>? _messagesSubscription;
_72
List<Message> _messages = [];
_72
_72
late final String _roomId;
_72
late final String _myUserId;
_72
_72
void setMessagesListener(String roomId) {
_72
_roomId = roomId;
_72
_72
_myUserId = supabase.auth.currentUser!.id;
_72
_72
_messagesSubscription = supabase
_72
.from('messages')
_72
.stream(primaryKey: ['id'])
_72
.eq('room_id', roomId)
_72
.order('created_at')
_72
.map<List<Message>>(
_72
(data) => data
_72
.map<Message>(
_72
(row) => Message.fromMap(map: row, myUserId: _myUserId))
_72
.toList(),
_72
)
_72
.listen((messages) {
_72
_messages = messages;
_72
if (_messages.isEmpty) {
_72
emit(ChatEmpty());
_72
} else {
_72
emit(ChatLoaded(_messages));
_72
}
_72
});
_72
}
_72
_72
Future<void> sendMessage(String text) async {
_72
/// Add message to present to the user right away
_72
final message = Message(
_72
id: 'new',
_72
roomId: _roomId,
_72
profileId: _myUserId,
_72
content: text,
_72
createdAt: DateTime.now(),
_72
isMine: true,
_72
);
_72
_messages.insert(0, message);
_72
emit(ChatLoaded(_messages));
_72
_72
try {
_72
await supabase.from('messages').insert(message.toMap());
_72
} catch (_) {
_72
emit(ChatError('Error submitting message.'));
_72
_messages.removeWhere((message) => message.id == 'new');
_72
emit(ChatLoaded(_messages));
_72
}
_72
}
_72
_72
@override
_72
Future<void> close() {
_72
_messagesSubscription?.cancel();
_72
return super.close();
_72
}
_72
}

Chat cubit is pretty simple. It sets a real-time listener to the database using the stream method and emits an empty state if there are no messages in the room, or emits a loaded state if there are messages.

Because we are using cubit, we need to modify the MessagesPage widget as well. Open lib/pages/chat_page.dart and let's update it.


_193
import 'package:flutter/material.dart';
_193
import 'package:flutter_bloc/flutter_bloc.dart';
_193
import 'package:my_chat_app/components/user_avatar.dart';
_193
import 'package:my_chat_app/cubits/chat/chat_cubit.dart';
_193
_193
import 'package:my_chat_app/models/message.dart';
_193
import 'package:my_chat_app/utils/constants.dart';
_193
import 'package:timeago/timeago.dart';
_193
_193
/// Page to chat with someone.
_193
///
_193
/// Displays chat bubbles as a ListView and TextField to enter new chat.
_193
class ChatPage extends StatelessWidget {
_193
const ChatPage({Key? key}) : super(key: key);
_193
_193
static Route<void> route(String roomId) {
_193
return MaterialPageRoute(
_193
builder: (context) => BlocProvider<ChatCubit>(
_193
create: (context) => ChatCubit()..setMessagesListener(roomId),
_193
child: const ChatPage(),
_193
),
_193
);
_193
}
_193
_193
@override
_193
Widget build(BuildContext context) {
_193
return Scaffold(
_193
appBar: AppBar(title: const Text('Chat')),
_193
body: BlocConsumer<ChatCubit, ChatState>(
_193
listener: (context, state) {
_193
if (state is ChatError) {
_193
context.showErrorSnackBar(message: state.message);
_193
}
_193
},
_193
builder: (context, state) {
_193
if (state is ChatInitial) {
_193
return preloader;
_193
} else if (state is ChatLoaded) {
_193
final messages = state.messages;
_193
return Column(
_193
children: [
_193
Expanded(
_193
child: ListView.builder(
_193
padding: const EdgeInsets.symmetric(vertical: 8),
_193
reverse: true,
_193
itemCount: messages.length,
_193
itemBuilder: (context, index) {
_193
final message = messages[index];
_193
return _ChatBubble(message: message);
_193
},
_193
),
_193
),
_193
const _MessageBar(),
_193
],
_193
);
_193
} else if (state is ChatEmpty) {
_193
return Column(
_193
children: const [
_193
Expanded(
_193
child: Center(
_193
child: Text('Start your conversation now :)'),
_193
),
_193
),
_193
_MessageBar(),
_193
],
_193
);
_193
} else if (state is ChatError) {
_193
return Center(child: Text(state.message));
_193
}
_193
throw UnimplementedError();
_193
},
_193
),
_193
);
_193
}
_193
}
_193
_193
/// Set of widget that contains TextField and Button to submit message
_193
class _MessageBar extends StatefulWidget {
_193
const _MessageBar({
_193
Key? key,
_193
}) : super(key: key);
_193
_193
@override
_193
State<_MessageBar> createState() => _MessageBarState();
_193
}
_193
_193
class _MessageBarState extends State<_MessageBar> {
_193
late final TextEditingController _textController;
_193
_193
@override
_193
Widget build(BuildContext context) {
_193
return Material(
_193
color: Theme.of(context).cardColor,
_193
child: Padding(
_193
padding: EdgeInsets.only(
_193
top: 8,
_193
left: 8,
_193
right: 8,
_193
bottom: MediaQuery.of(context).padding.bottom,
_193
),
_193
child: Row(
_193
children: [
_193
Expanded(
_193
child: TextFormField(
_193
keyboardType: TextInputType.text,
_193
maxLines: null,
_193
autofocus: true,
_193
controller: _textController,
_193
decoration: const InputDecoration(
_193
hintText: 'Type a message',
_193
border: InputBorder.none,
_193
focusedBorder: InputBorder.none,
_193
contentPadding: EdgeInsets.all(8),
_193
),
_193
),
_193
),
_193
TextButton(
_193
onPressed: () => _submitMessage(),
_193
child: const Text('Send'),
_193
),
_193
],
_193
),
_193
),
_193
);
_193
}
_193
_193
@override
_193
void initState() {
_193
_textController = TextEditingController();
_193
super.initState();
_193
}
_193
_193
@override
_193
void dispose() {
_193
_textController.dispose();
_193
super.dispose();
_193
}
_193
_193
void _submitMessage() async {
_193
final text = _textController.text;
_193
if (text.isEmpty) {
_193
return;
_193
}
_193
BlocProvider.of<ChatCubit>(context).sendMessage(text);
_193
_textController.clear();
_193
}
_193
}
_193
_193
class _ChatBubble extends StatelessWidget {
_193
const _ChatBubble({
_193
Key? key,
_193
required this.message,
_193
}) : super(key: key);
_193
_193
final Message message;
_193
_193
@override
_193
Widget build(BuildContext context) {
_193
List<Widget> chatContents = [
_193
if (!message.isMine) UserAvatar(userId: message.profileId),
_193
const SizedBox(width: 12),
_193
Flexible(
_193
child: Container(
_193
padding: const EdgeInsets.symmetric(
_193
vertical: 8,
_193
horizontal: 12,
_193
),
_193
decoration: BoxDecoration(
_193
color: message.isMine
_193
? Colors.grey[300]
_193
: Theme.of(context).primaryColor,
_193
borderRadius: BorderRadius.circular(8),
_193
),
_193
child: Text(message.content),
_193
),
_193
),
_193
const SizedBox(width: 12),
_193
Text(format(message.createdAt, locale: 'en_short')),
_193
const SizedBox(width: 60),
_193
];
_193
if (message.isMine) {
_193
chatContents = chatContents.reversed.toList();
_193
}
_193
return Padding(
_193
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 18),
_193
child: Row(
_193
mainAxisAlignment:
_193
message.isMine ? MainAxisAlignment.end : MainAxisAlignment.start,
_193
children: chatContents,
_193
),
_193
);
_193
}
_193
}

Step 3: Handle user sign-up/ sign-in

Because we have modified the setting of our Supabase to send a confirmation email, we need to make some modifications to the register page and login page as well.

The main change is how we handle navigation. Previously, we were able to navigate the user to ChatPage right after sign-in was complete. This would no longer work, as we now have to wait for the user to confirm their email address. In this case, we would want to listen to auth state of the user and navigate when the user is signed in with a session. This allows us to react when the user confirmed their email addresses.


_169
import 'dart:async';
_169
_169
import 'package:flutter/material.dart';
_169
import 'package:my_chat_app/pages/login_page.dart';
_169
import 'package:my_chat_app/pages/rooms_page.dart';
_169
import 'package:my_chat_app/utils/constants.dart';
_169
import 'package:supabase_flutter/supabase_flutter.dart';
_169
_169
class RegisterPage extends StatefulWidget {
_169
const RegisterPage(
_169
{Key? key, required this.isRegistering})
_169
: super(key: key);
_169
_169
static Route<void> route({bool isRegistering = false}) {
_169
return MaterialPageRoute(
_169
builder: (context) =>
_169
RegisterPage(isRegistering: isRegistering),
_169
);
_169
}
_169
_169
final bool isRegistering;
_169
_169
@override
_169
State<RegisterPage> createState() => _RegisterPageState();
_169
}
_169
_169
class _RegisterPageState extends State<RegisterPage> {
_169
final bool _isLoading = false;
_169
_169
final _formKey = GlobalKey<FormState>();
_169
_169
final _emailController = TextEditingController();
_169
final _passwordController = TextEditingController();
_169
final _usernameController = TextEditingController();
_169
_169
late final StreamSubscription<AuthState>
_169
_authSubscription;
_169
_169
@override
_169
void initState() {
_169
super.initState();
_169
_169
bool haveNavigated = false;
_169
// Listen to auth state to redirect user when the user clicks on confirmation link
_169
_authSubscription =
_169
supabase.auth.onAuthStateChange.listen((data) {
_169
final session = data.session;
_169
if (session != null && !haveNavigated) {
_169
haveNavigated = true;
_169
Navigator.of(context)
_169
.pushReplacement(RoomsPage.route());
_169
}
_169
});
_169
}
_169
_169
@override
_169
void dispose() {
_169
super.dispose();
_169
_169
// Dispose subscription when no longer needed
_169
_authSubscription.cancel();
_169
}
_169
_169
Future<void> _signUp() async {
_169
final isValid = _formKey.currentState!.validate();
_169
if (!isValid) {
_169
return;
_169
}
_169
final email = _emailController.text;
_169
final password = _passwordController.text;
_169
final username = _usernameController.text;
_169
try {
_169
await supabase.auth.signUp(
_169
email: email,
_169
password: password,
_169
data: {'username': username},
_169
emailRedirectTo: 'io.supabase.chat://login',
_169
);
_169
context.showSnackBar(
_169
message:
_169
'Please check your inbox for confirmation email.');
_169
} on AuthException catch (error) {
_169
context.showErrorSnackBar(message: error.message);
_169
} catch (error) {
_169
debugPrint(error.toString());
_169
context.showErrorSnackBar(
_169
message: unexpectedErrorMessage);
_169
}
_169
}
_169
_169
@override
_169
Widget build(BuildContext context) {
_169
return Scaffold(
_169
appBar: AppBar(
_169
title: const Text('Register'),
_169
),
_169
body: Form(
_169
key: _formKey,
_169
child: ListView(
_169
padding: formPadding,
_169
children: [
_169
TextFormField(
_169
controller: _emailController,
_169
decoration: const InputDecoration(
_169
label: Text('Email'),
_169
),
_169
validator: (val) {
_169
if (val == null || val.isEmpty) {
_169
return 'Required';
_169
}
_169
return null;
_169
},
_169
keyboardType: TextInputType.emailAddress,
_169
),
_169
spacer,
_169
TextFormField(
_169
controller: _passwordController,
_169
obscureText: true,
_169
decoration: const InputDecoration(
_169
label: Text('Password'),
_169
),
_169
validator: (val) {
_169
if (val == null || val.isEmpty) {
_169
return 'Required';
_169
}
_169
if (val.length < 6) {
_169
return '6 characters minimum';
_169
}
_169
return null;
_169
},
_169
),
_169
spacer,
_169
TextFormField(
_169
controller: _usernameController,
_169
decoration: const InputDecoration(
_169
label: Text('Username'),
_169
),
_169
validator: (val) {
_169
if (val == null || val.isEmpty) {
_169
return 'Required';
_169
}
_169
final isValid =
_169
RegExp(r'^[A-Za-z0-9_]{3,24}$')
_169
.hasMatch(val);
_169
if (!isValid) {
_169
return '3-24 long with alphanumeric or underscore';
_169
}
_169
return null;
_169
},
_169
),
_169
spacer,
_169
ElevatedButton(
_169
onPressed: _isLoading ? null : _signUp,
_169
child: const Text('Register'),
_169
),
_169
spacer,
_169
TextButton(
_169
onPressed: () {
_169
Navigator.of(context)
_169
.push(LoginPage.route());
_169
},
_169
child:
_169
const Text('I already have an account'))
_169
],
_169
),
_169
),
_169
);
_169
}
_169
}

Login page becomes simpler. All it is doing is taking a user's email and password and logging them in. It is not doing any navigation whatsoever. This is because LoginPage is navigated on top of RegisterPage, the auth state listener on RegisterPage is still active, and therefore can take care of the navigation.


_80
import 'package:flutter/material.dart';
_80
import 'package:my_chat_app/utils/constants.dart';
_80
import 'package:supabase_flutter/supabase_flutter.dart';
_80
_80
class LoginPage extends StatefulWidget {
_80
const LoginPage({Key? key}) : super(key: key);
_80
_80
static Route<void> route() {
_80
return MaterialPageRoute(
_80
builder: (context) => const LoginPage());
_80
}
_80
_80
@override
_80
_LoginPageState createState() => _LoginPageState();
_80
}
_80
_80
class _LoginPageState extends State<LoginPage> {
_80
bool _isLoading = false;
_80
final _emailController = TextEditingController();
_80
final _passwordController = TextEditingController();
_80
_80
Future<void> _signIn() async {
_80
setState(() {
_80
_isLoading = true;
_80
});
_80
try {
_80
await supabase.auth.signInWithPassword(
_80
email: _emailController.text,
_80
password: _passwordController.text,
_80
);
_80
} on AuthException catch (error) {
_80
context.showErrorSnackBar(message: error.message);
_80
} catch (_) {
_80
context.showErrorSnackBar(
_80
message: unexpectedErrorMessage);
_80
}
_80
if (mounted) {
_80
setState(() {
_80
_isLoading = true;
_80
});
_80
}
_80
}
_80
_80
@override
_80
void dispose() {
_80
_emailController.dispose();
_80
_passwordController.dispose();
_80
super.dispose();
_80
}
_80
_80
@override
_80
Widget build(BuildContext context) {
_80
return Scaffold(
_80
appBar: AppBar(title: const Text('Sign In')),
_80
body: ListView(
_80
padding: formPadding,
_80
children: [
_80
TextFormField(
_80
controller: _emailController,
_80
decoration:
_80
const InputDecoration(labelText: 'Email'),
_80
keyboardType: TextInputType.emailAddress,
_80
),
_80
spacer,
_80
TextFormField(
_80
controller: _passwordController,
_80
decoration: const InputDecoration(
_80
labelText: 'Password'),
_80
obscureText: true,
_80
),
_80
spacer,
_80
ElevatedButton(
_80
onPressed: _isLoading ? null : _signIn,
_80
child: const Text('Login'),
_80
),
_80
],
_80
),
_80
);
_80
}
_80
}

Notice that I have not used bloc anywhere on the register or login page. I try to only use state management libraries for pages that have some complexity. Since both register and login pages are relatively simple, I am going with the good old setState.

We should also modify the splash page to redirect signed-in users to the RoomsPage by default.


_51
import 'package:flutter/material.dart';
_51
import 'package:my_chat_app/pages/register_page.dart';
_51
import 'package:my_chat_app/pages/rooms_page.dart';
_51
import 'package:my_chat_app/utils/constants.dart';
_51
import 'package:supabase_flutter/supabase_flutter.dart';
_51
_51
/// Page to redirect users to the appropriate page depending on the initial auth state
_51
class SplashPage extends StatefulWidget {
_51
const SplashPage({Key? key}) : super(key: key);
_51
_51
@override
_51
SplashPageState createState() => SplashPageState();
_51
}
_51
_51
class SplashPageState extends State<SplashPage> {
_51
@override
_51
void initState() {
_51
getInitialSession();
_51
super.initState();
_51
}
_51
_51
Future<void> getInitialSession() async {
_51
// quick and dirty way to wait for the widget to mount
_51
await Future.delayed(Duration.zero);
_51
_51
try {
_51
final session =
_51
await SupabaseAuth.instance.initialSession;
_51
if (session == null) {
_51
Navigator.of(context).pushAndRemoveUntil(
_51
RegisterPage.route(), (_) => false);
_51
} else {
_51
Navigator.of(context).pushAndRemoveUntil(
_51
RoomsPage.route(), (_) => false);
_51
}
_51
} catch (_) {
_51
context.showErrorSnackBar(
_51
message: 'Error occurred during session refresh',
_51
);
_51
Navigator.of(context).pushAndRemoveUntil(
_51
RegisterPage.route(), (_) => false);
_51
}
_51
}
_51
_51
@override
_51
Widget build(BuildContext context) {
_51
return const Scaffold(
_51
body: Center(child: CircularProgressIndicator()),
_51
);
_51
}
_51
}

Finally we implement those ProfilesCubit that you saw here and there throughout the code. This cubit will act as in memory cache of all the profiles data so that the app does not have to go fetch the same profiles every single time it needs it. Create profiles_state.dart and profiles_cubit.dart under lib/cubits/ and add the following code.


_14
part of 'profiles_cubit.dart';
_14
_14
@immutable
_14
abstract class ProfilesState {}
_14
_14
class ProfilesInitial extends ProfilesState {}
_14
_14
class ProfilesLoaded extends ProfilesState {
_14
ProfilesLoaded({
_14
required this.profiles,
_14
});
_14
_14
final Map<String, Profile?> profiles;
_14
}


_33
import 'dart:async';
_33
_33
import 'package:bloc/bloc.dart';
_33
import 'package:meta/meta.dart';
_33
import 'package:my_chat_app/models/profile.dart';
_33
import 'package:my_chat_app/utils/constants.dart';
_33
_33
part 'profiles_state.dart';
_33
_33
class ProfilesCubit extends Cubit<ProfilesState> {
_33
ProfilesCubit() : super(ProfilesInitial());
_33
_33
/// Map of app users cache in memory with profile_id as the key
_33
final Map<String, Profile?> _profiles = {};
_33
_33
Future<void> getProfile(String userId) async {
_33
if (_profiles[userId] != null) {
_33
return;
_33
}
_33
_33
final data = await supabase
_33
.from('profiles')
_33
.select()
_33
.match({'id': userId}).single();
_33
_33
if (data == null) {
_33
return;
_33
}
_33
_profiles[userId] = Profile.fromMap(data);
_33
_33
emit(ProfilesLoaded(profiles: _profiles));
_33
}
_33
}

We will make the ProfilesCubit accessible from anywhere in the app with the following code in main.dart file.


_36
import 'package:flutter/material.dart';
_36
import 'package:flutter_bloc/flutter_bloc.dart';
_36
import 'package:my_chat_app/cubits/profiles/profiles_cubit.dart';
_36
import 'package:my_chat_app/utils/constants.dart';
_36
import 'package:supabase_flutter/supabase_flutter.dart';
_36
import 'package:my_chat_app/pages/splash_page.dart';
_36
_36
Future<void> main() async {
_36
WidgetsFlutterBinding.ensureInitialized();
_36
_36
await Supabase.initialize(
_36
// TODO: Replace credentials with your own
_36
url: 'supabase_url',
_36
anonKey: 'supabase_anon_key',
_36
authCallbackUrlHostname: 'login',
_36
);
_36
_36
runApp(const MyApp());
_36
}
_36
_36
class MyApp extends StatelessWidget {
_36
const MyApp({Key? key}) : super(key: key);
_36
_36
@override
_36
Widget build(BuildContext context) {
_36
return BlocProvider<ProfilesCubit>(
_36
create: (context) => ProfilesCubit(),
_36
child: MaterialApp(
_36
title: 'SupaChat',
_36
debugShowCheckedModeBanner: false,
_36
theme: appTheme,
_36
home: const SplashPage(),
_36
),
_36
);
_36
}
_36
}

Step 4: Authorization with Row Level Security (RLS)

At this point, we seemingly have a complete app. But if we open the app right now, we will see every users' room along with all the messages that have ever been sent. This is because we have not set up Row Level Security to prevent users from accessing rooms that don't belong to them. There are two ways we can define Row Level Security policies in Supabase: with the GUI or through SQL. Today we will use SQL. Let's run the following SQL to set the security policy.


_34
-- Returns true if the signed in user is a participant of the room
_34
create or replace function is_room_participant(room_id uuid)
_34
returns boolean as $$
_34
select exists(
_34
select 1
_34
from room_participants
_34
where room_id = is_room_participant.room_id and profile_id = auth.uid()
_34
);
_34
$$ language sql security definer;
_34
_34
_34
-- *** Row level security polities ***
_34
_34
_34
alter table public.profiles enable row level security;
_34
create policy "Public profiles are viewable by everyone."
_34
on public.profiles for select using (true);
_34
_34
_34
alter table public.rooms enable row level security;
_34
create policy "Users can view rooms that they have joined"
_34
on public.rooms for select using (is_room_participant(id));
_34
_34
_34
alter table public.room_participants enable row level security;
_34
create policy "Participants of the room can view other participants."
_34
on public.room_participants for select using (is_room_participant(room_id));
_34
_34
_34
alter table public.messages enable row level security;
_34
create policy "Users can view messages on rooms they are in."
_34
on public.messages for select using (is_room_participant(room_id));
_34
create policy "Users can insert messages on rooms they are in."
_34
on public.messages for insert with check (is_room_participant(room_id) and profile_id = auth.uid());

Notice that we have created a handy is_room_participant function that will return whether a particular user is a participant or not in a specific room.

With the Row Level Security policies set up, our application is complete. We now have a real-time chat application with proper authentication and authorization in place.

Conclusions/ Future Improvements

Continuing from our previous article, we added proper authorization to our chat application using Row Level Security, which enabled us to add 1 on 1 chat feature. We used bloc for our state management solution. One thing we could have done differently if we were to write test codes was to pass the supabase instance as a parameter of the cubit so that we could write tests using the bloc_test package.

We could also explore some cool feature improvement. At the top of the rooms page, we are loading the newest created users to start a conversation. This is fine, but it only allows users to start a conversation with new users. We can for example update this to a list of users that are online at the same time. We can implement this using the presence feature of Supabase.

More Flutter Resources

Share this article

Build in a weekend, scale to millions
